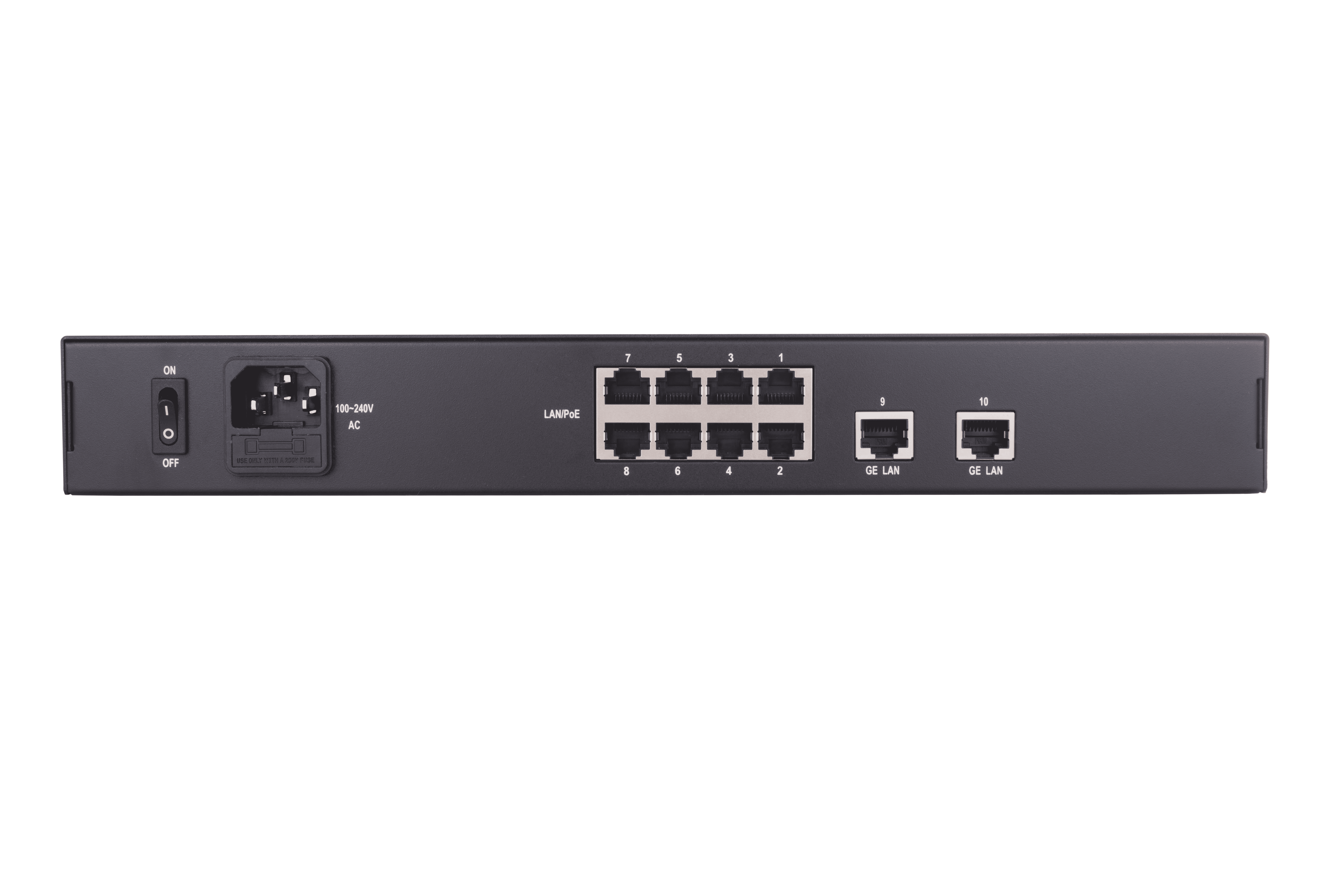

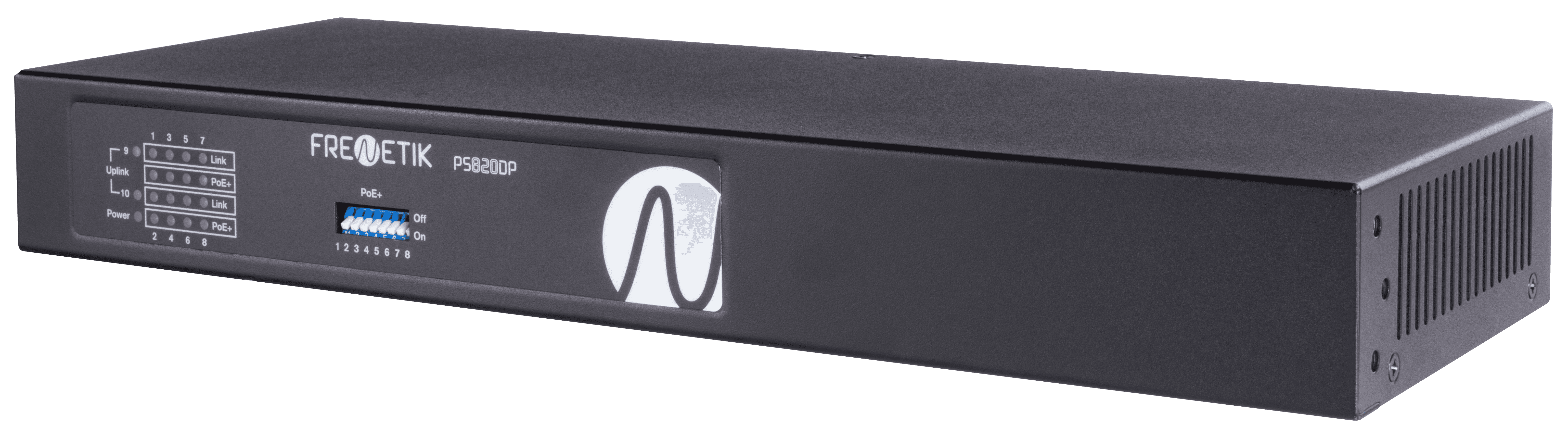

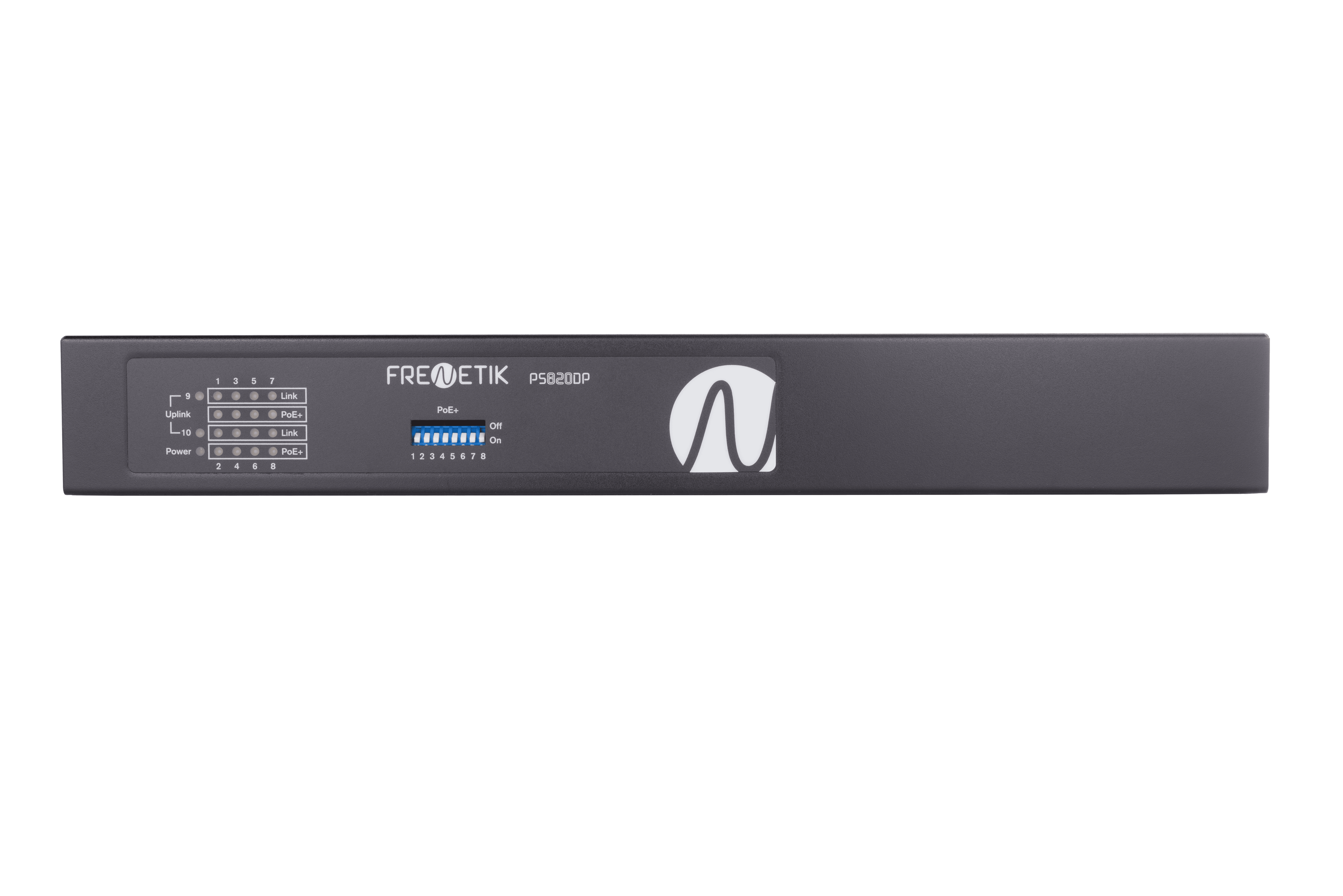

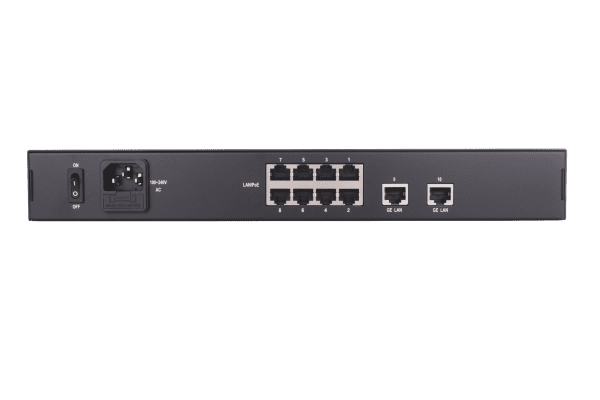

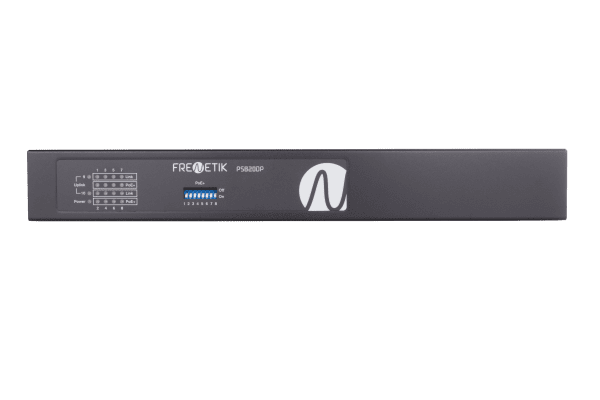

Core 8

  • Dante™ Distributor PoE+ 1 input, 1 copy and 8 outputs. Allows distribution of the Dante network and supply of PoE+ to 8 FRENETIK speakers simultaneously
  • PoE+ power supply disconnectable on each port
  • Maximum power permanently available on each port
  • Also allows distribution to any IP network protocol and supply to all other devices with PoE
  • 3 year warranty
  • Standards: IEEE 802.3/u 10/100/1000BaseT/TX / IEEE 802.3x Flow Control / IEEE 802.3at/af PoE / midspan PoE
  • Non-PoE ports: 2
  • PoE+ ports: 8
  • PoE activation (On/Off): Dip-Switches
  • Ethernet switch features: MAC Address: 8K / Buffer Memory: 128KB / Store and Forward
  • Packet filtering/transmission speeds: 1000Mbps port – 1,488,000pps / 100Mbps port – 148,800pps / 10Mbps port – 14,880pps
  • Network cables: 100/1000BaseTx Cat. 5 UTP/STP / 10BaseT Cat. 3, 4, 5 UTP/STP
  • Standard PoE wiring: 4, 5, 7, 8
  • LED indicators: Ports Link 1 . 8: 10/100 Mbits/s, PoE ON/OFF / Ports Uplink 9 et10: 100/1000 Mbits/s / Pour l’appareil: Power
  • Power Input: 100-240 VAC, 50~60 Hz / Sorties: 56 VDC 4.46 A (250 W)
  • PoE power on each port:  30 W
  • Dimensions: 40 x 480 x 118 mm (H x L x P)
  • Weight: 1.70 kg
  • Operating temperature range: 0°C to 40°C
  • Storage temperature range:  -20°C to 90°C
  • Humidity: 10 to 90% (non-condensing)
