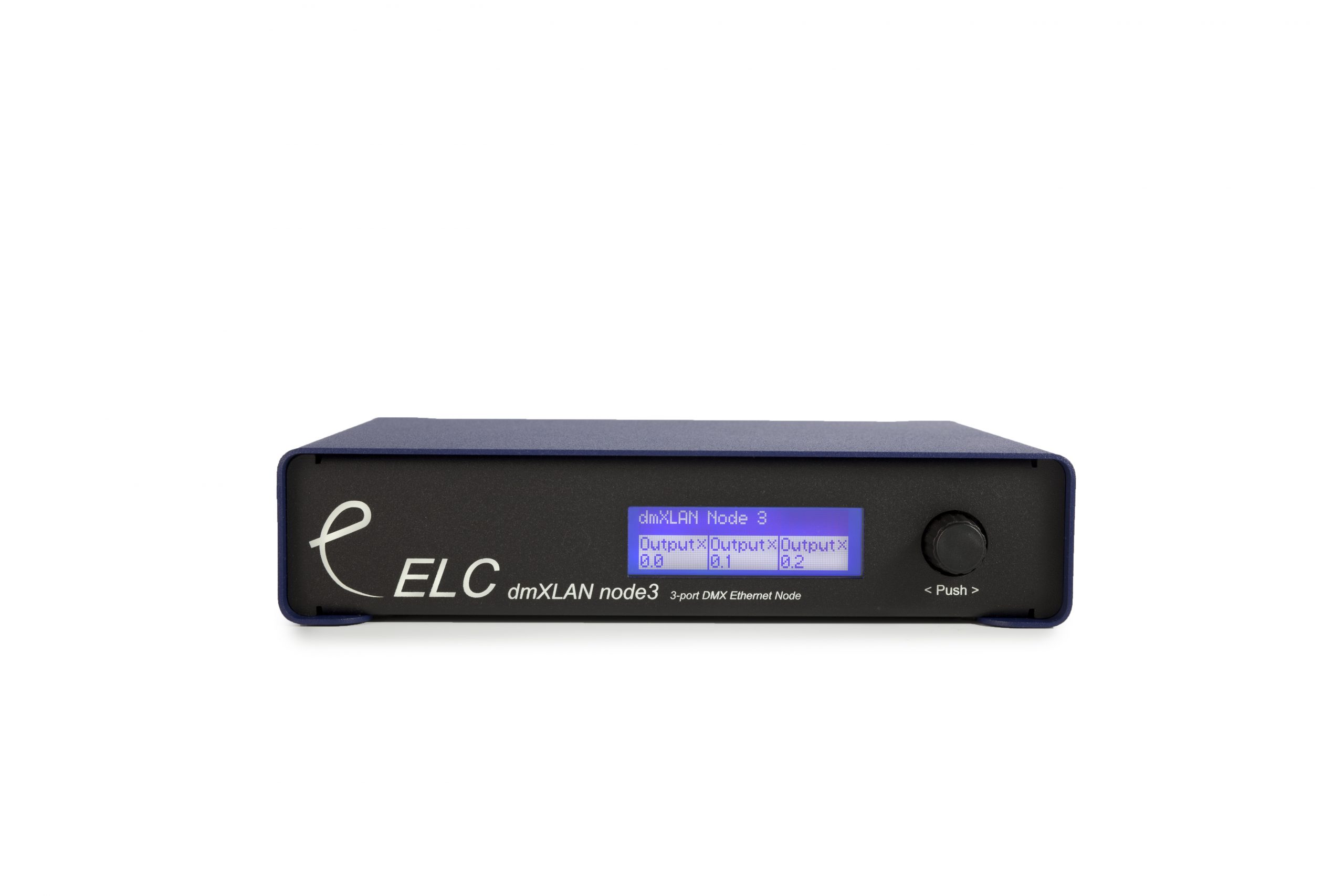

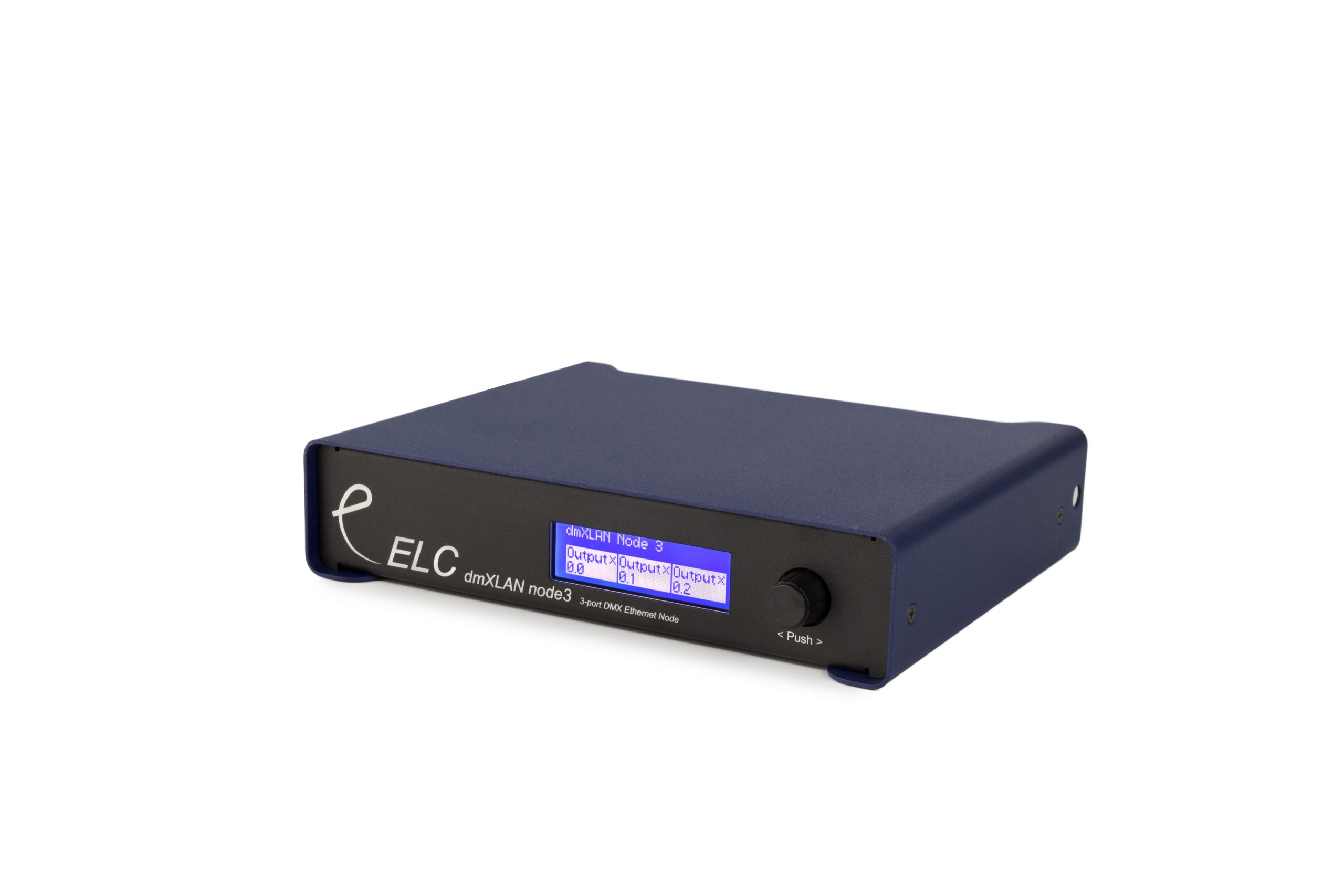

dmXLAN node3

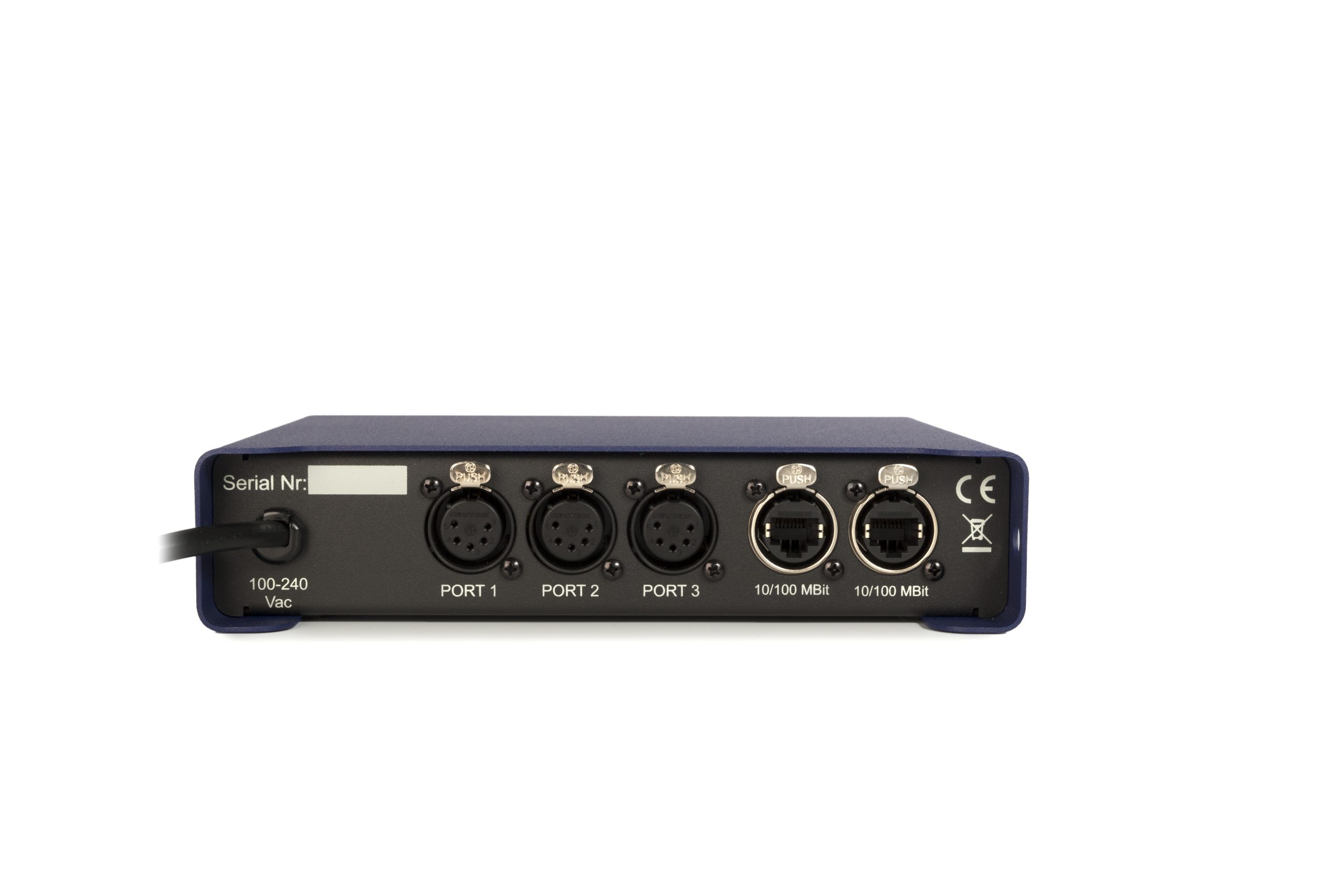

  • 3 Bi-directional DMX ports on the rear panel, XLR, RDM compatible
  • Supports sACN, Art-Net & Shownet
  • 2 Ethernet ports (Neutrik Ethercon) 10/100MBit with integral Ethernet switch
  • Remote programming and monitoring, with remote fixture parameter override
  • DMX Input normal or backup
  • DMX Output normal, HTP, Priority merging, Softpatch (channel by channel), programmable merging with DMX channel control
  • Local control via backlit display, rotary encoder/selector pushbutton
  • Support for WYSIWYG, ESP, Capture

The dmXLAN node3 has 3 bi-directional DMX ports to convert from or to sACN, Art-Net or Shownet. An internal switch provides a second Ethernet port for a local lighting desk or additional Ethernet switches or nodes. The Node3 is available with fully isolated DMX ports and Power over Ethernet.
