• Input voltage/frequency range: 90-264Vac 50-60 Hz
  • Power Factor: PF >0.95 / 230 VAC – PF >0.98 / 110 VAC @ Full Load
  • Output channels: 2 channels
  • Output voltage: 48 Vdc
  • Output current: 6700mA
  • Max power: 320 W – 2 x 160 W
  • Power-U 320: 1 x 320W
Categories: ,

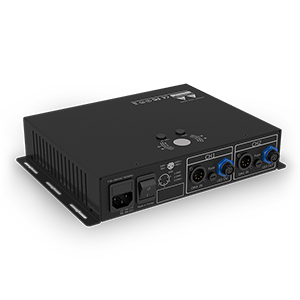

Power-U series is a power supply suitable for Scimitar line. In Power-U series is fitted with frontal indicators to easy identify outputs and easily setup easily products without the need for auxiliary devices. The units are unified boxes that prevent complex combinations of power and data cables and hence ensure easy assembly. The series is available in 4 models according to nominal power; 320, 500, 1000, 2000 W.

Power-U 320 can be installed as wall mount or via DIN Rail apparatus in panel applications. The unit is fitted with LEDs that indicate whether power and DMX signals are being received. You can see which port has DMX output and which port has voltage output. The device has protection against short circuit, overload, over voltage, and over temperature.
