• Input voltage/frequency range: 90-264Vac 50-60 Hz
  • Power Factor: PF >0.95 / 230 VAC – PF >0.98 / 110 VAC @ Full Load
  • Output channels: 2 channels
  • Output voltage: 48 Vdc
  • Output current: 10500mA
  • Max power: 500 W – 2 x 250 W (Maximum 500 W output can be obtained from each port)
  • Power-U 500: 1 x 500W
Categories: ,

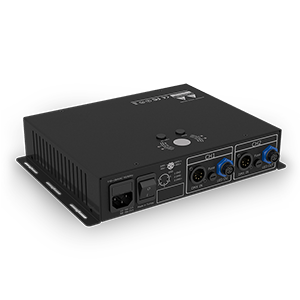

Power-U series is a power supply suitable for Scimitar line. In Power-U series is fitted with frontal indicators to easy identify outputs and easily setup easily products without the need for auxiliary devices. The units are unified boxes that prevent complex combinations of power and data cables and hence ensure easy assembly. The series is available in 4 models according to nominal power; 320, 500, 1000, 2000 W.

Power-U 500 is a 2 units rack and it can be installed also in DIN Rail panel applications. The unit offers 250 W for each port and it’s fitted with LEDs that indicate whether power and DMX signals are being received. You can see which port has DMX output and which port has voltage output. The device has protection against short circuit, overload, over voltage, and over temperature.
